- Techpolymer is used as a light diffusion material in light covers.
- For LED lights in particular, which have more directed light, our products reduce lamp images and hot spots.
- In addition our products reduce uneven brightness, and make the entire light cover bright.
- Also expected to have results in molded product unevenness (gloss) adjustment.
Recommended Product

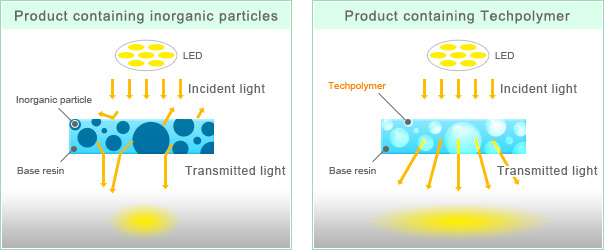

Compared to inorganic particles, Techpolymer provides higher haze and high total light transmittance.
Molded Plate Haze(%)
| Diffusion Material | Diffusion Material Additive Amount | ||
| 1% | 2% | 3% | |
| MBX-5 | 12.9 | 14.9 | 20.4 |
| SBX-6 | 98.7 | 99.1 | 99.2 |
| Inorganic Particle (Comparison Examples) | 98.9 | 99.2 | 99.3 |
*Measure values are for reference only.
Molded Plate Total Light Transmittance
| Diffusion Material | Diffusion Material Additive Amount | ||
| 1% | 2% | 3% | |
| MBX-5 | 90.0 | 89.7 | 89.4 |
| SBX-6 | 74.5 | 68.0 | 63.0 |
| Inorganic Particle (Comparison Examples) | 63.2 | 57.7 | 53.9 |
Measurement: Ejection Molded Plate 2mm Thick
Base Material Refractive Index: PMMA 1.49
