Thermal Conductivity Control (TP-HM)
Overview
Particles controlling heat conductivity properties are under development by including materials with such properties within the internal structure of the particles.
- Composition
- Cross-linked Acrylic
- Structure
- Spherical
- Particle Size
- 8μm
- Particle Size Distribution
- Standard Type
- 3% Thermal Decomposition Temperature
- 250-270℃
- Solvent Resistance
- Standard
Features
- (1) Excellent light reflectivity in the range of visible light to infrared wavelengths.
- (2) Good compatibility with organic binders and dispersibility into organic binders.
Developed particle example: Heat Shielding Particles
Spherical resin particles with high light reflection between the range of visible light infrared wavelengths.
Heat shielding properties in paints and coatings can be achieved when applied.

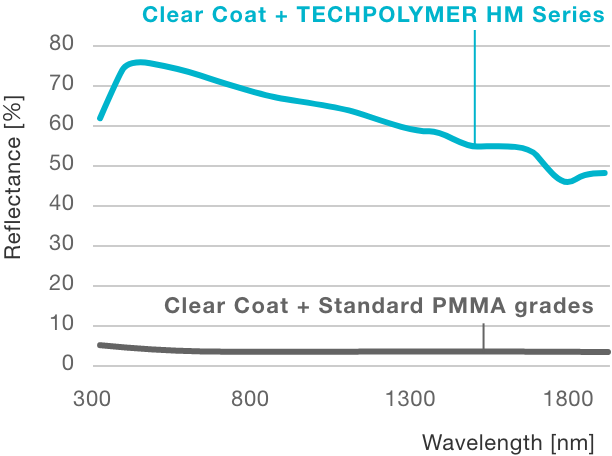

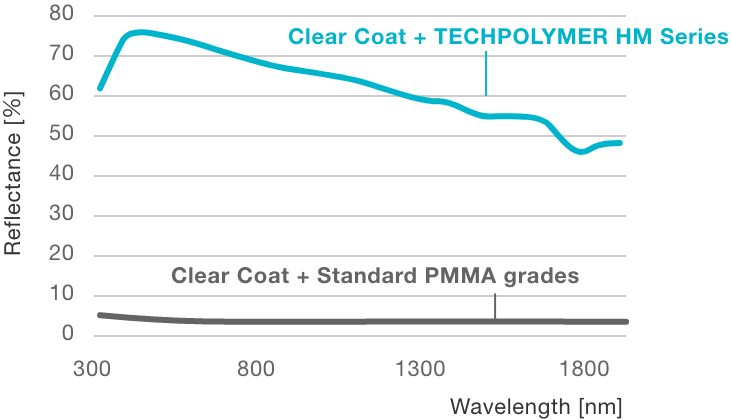

Light reflection property
Measured the light reflection properties of coatings including the heat shielding particles with a spectrophotometer. Light reflection properties were confirmed in the range of visible light to near-infrared wave lengths.

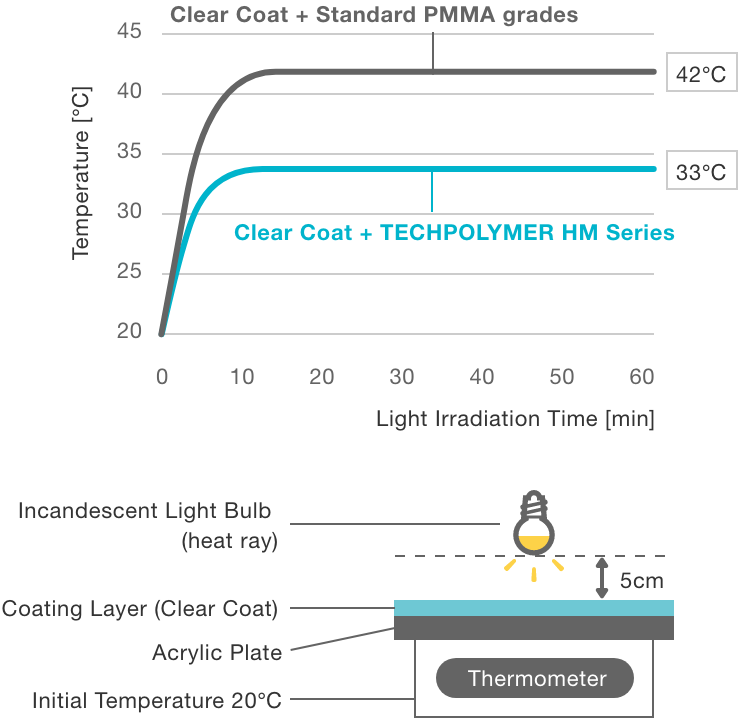

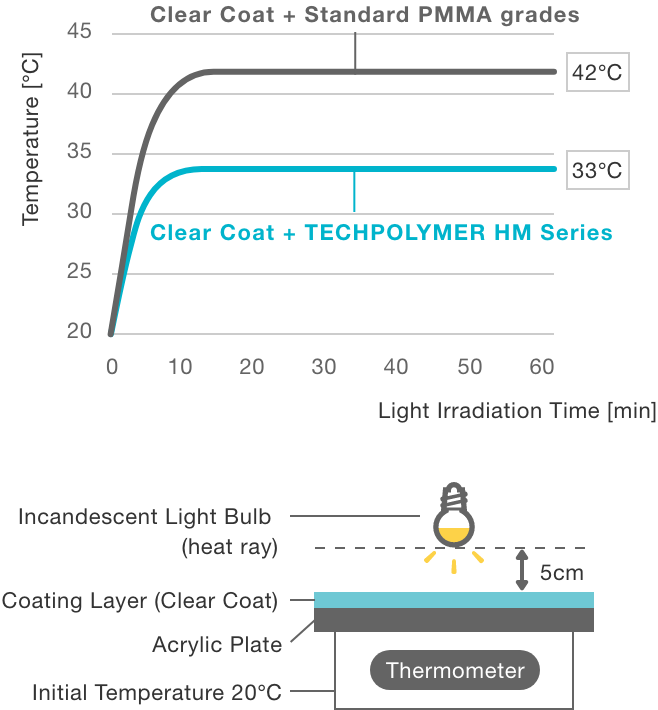

Heat shielding evaluation
To confirm the effects of light reflection properties, evaluation of measuring the temperature change with transparent coatings including particles were undertaken.
Our measurement methodLight reflection evaluation
Transparent paint including the particles coated on a black substrate was measured with a spectrophotometer to confirm the light reflection rates.
