Anti-blocking Agents
Others
"TECHPOLYMER" provides unique effects in a variety of application in addition to
display, coating and cosmetics applications. In addition, we offer added value to our customer's application
through a variety of product customizations.
In this section we would like to introduce some of the
specialized applications for which "TECHPOLYMER" is used. "TECHPOLYMER" can bring a variety of new effects and
results to our customers product development in addition to those listed here, so contact us for a
consultation on how we can contribute to your product development.

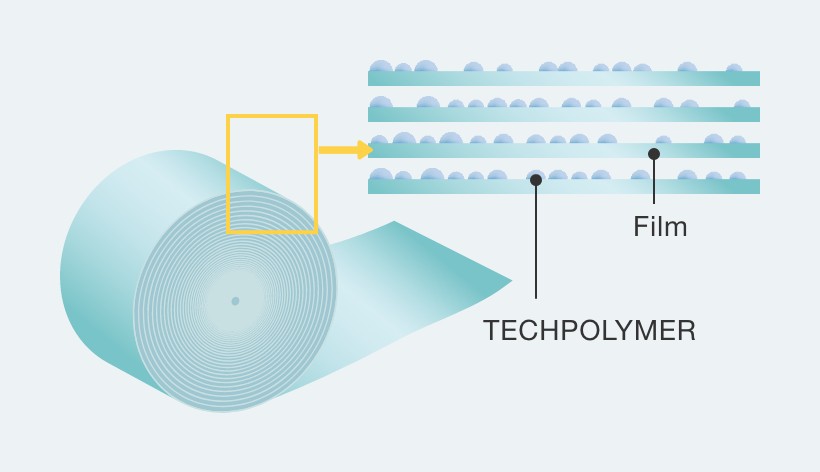

Anti-blocking Agents for Film
Adding "TECHPOLYMER" in extruded films or in coatings on the surface of films can provide
the films with anti-blocking effects by the uneven surface created on the film. Compared to inorganic
materials (such as silica), "TECHPOLYMER" has high chemical affinity with the base resins, and can help
prevent damage on the surface of the film while reducing loss of the anti-blocking agent. In addition, for
applications which require high transparency, "TECHPOLYMER" offers solutions from various refractive index
and sizes.
Customization of the particle size and refractive index adjustment is available for requests
to further increase transparency in the applications.
Calcination Binder
"TECHPOLYMER" IBM-3 is a methacrylic resin with good heat decomposition properties in a non-oxygenated atmospheres. It can be used for binders that leave no carbide residue when sintered. It has good solubility in a range of solvents, and its viscosity can be adjusted to suit your purposes.
Quality [IBM-3]
External Appearance
White Particles
Particle Diameter
About 50μm
Volatile Matter Content
(145°C×1hr)
1wt% by weight or less
Glass Transition Point
(Tg)
72℃
Molecular Weight
(Mw)
75×104
Solubility
Soluble in Terpineol, MEK, toluene and other organic solvents.

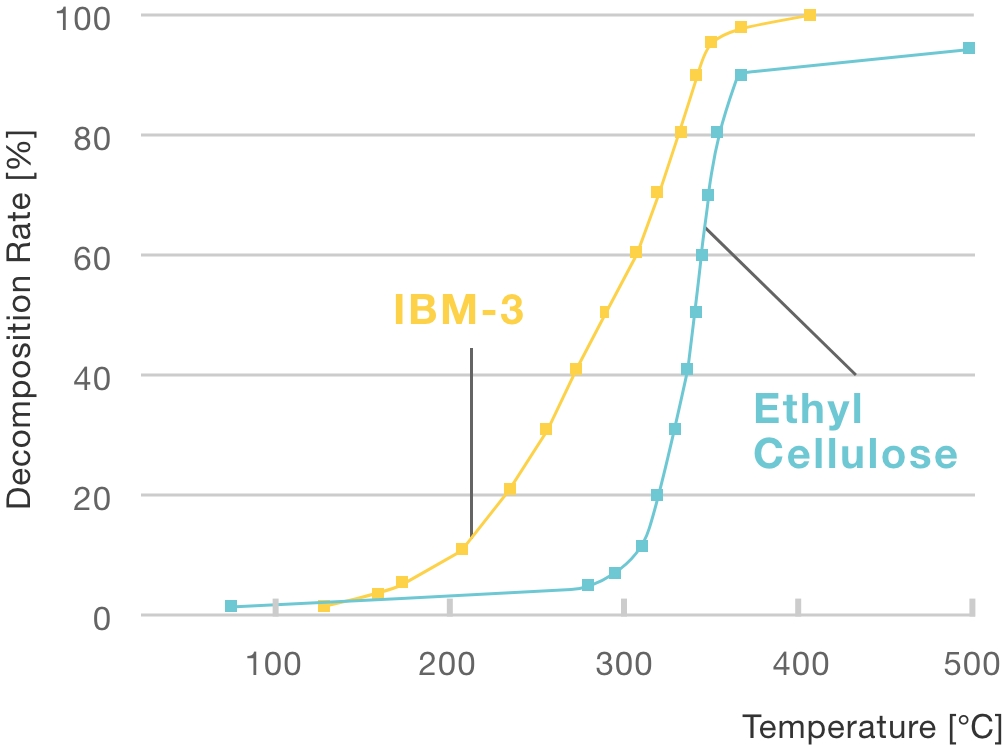

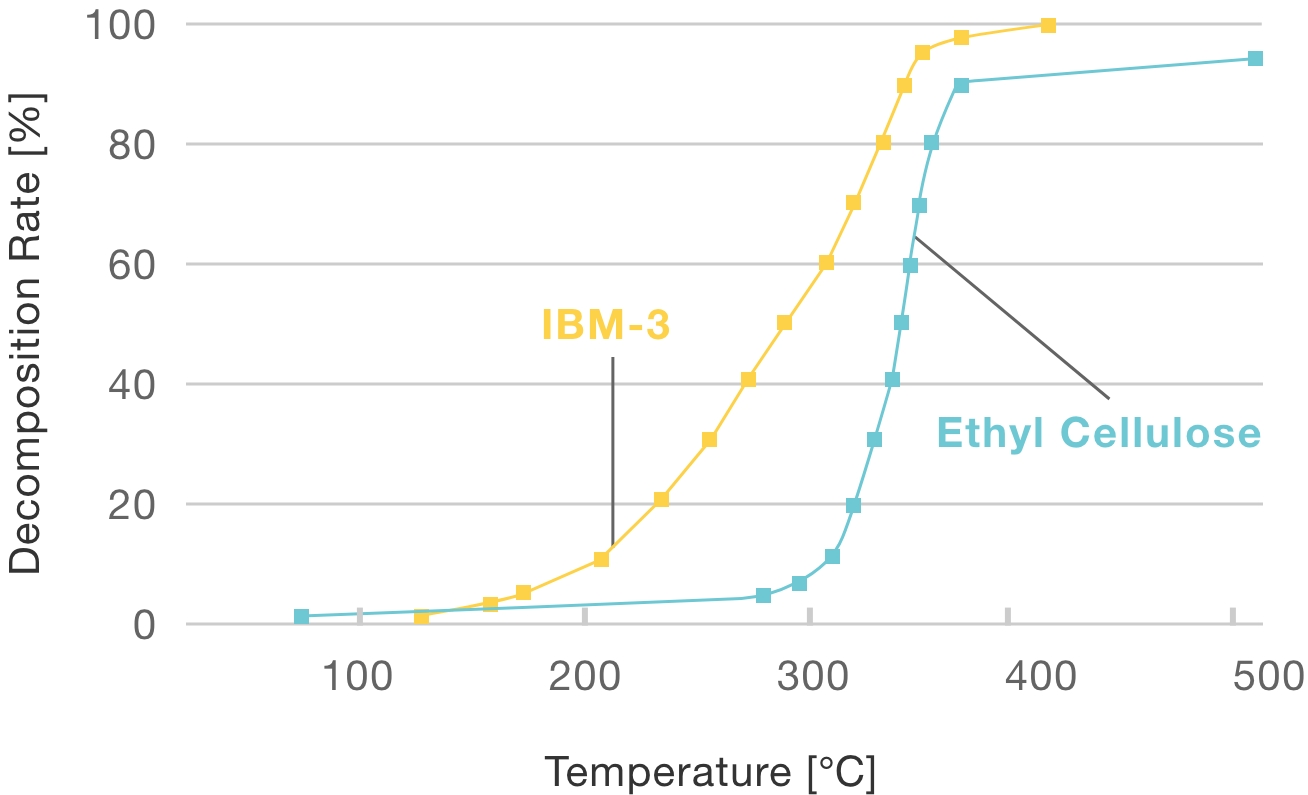

Thermal Decomposition [IBM-3]
Measurement Conditions
Measurement Atmosphere :
Nitrogen
Temperature Range : 40-500℃
"TECHPOLYMER" IBM-3 degrades at lower temperature when compared with ethyl cellulose, completely breaking down at approx. 400℃.
Solubility Characteristics [IBM-3]
Solubility in Various Solvents
Solvent
Solubility
Solvent
Solubility
Solvent
Solubility
Benzene
Readily Soluble
Isopropanol
Partially Soluble
Toluene
Readily Soluble
n-butanol
Partially Soluble
Xylene
Readily Soluble
Ethylene Glycol
Not Soluble
Ethyl Acetate
Readily Soluble
Terpineol
Readily Soluble
Butyl Acetate
Readily Soluble
THF
Readily Soluble
Acetone
Readily Soluble
Carbon Tetrachloride
Readily Soluble
MEK
Readily Soluble
Chloroform
Readily Soluble
MIBK
Readily Soluble
n-hexane
Not Soluble
Methanol
Not Soluble
Cyclohexane
Not Soluble

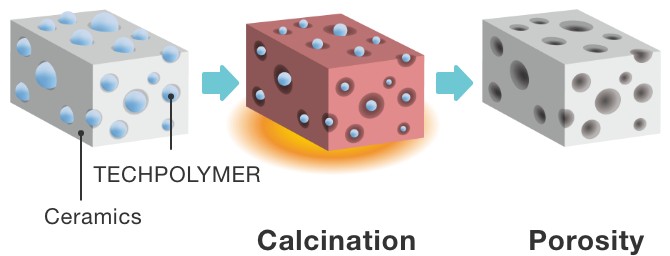

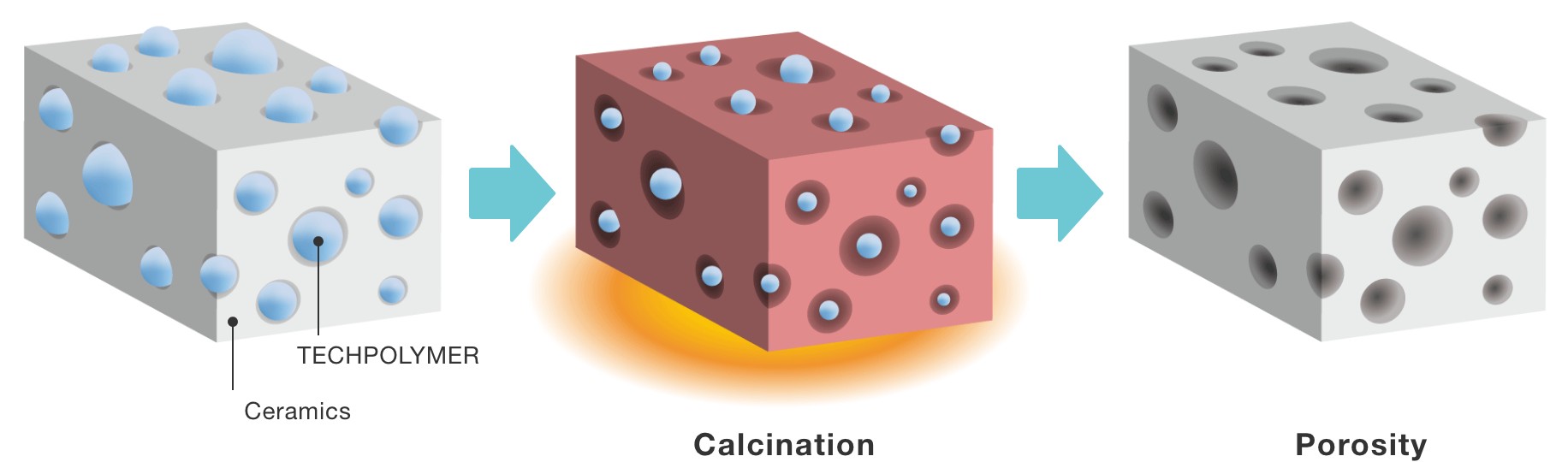

Pore Former
"TECHPOLYMER" can be used as pore forming agents by mixing with ceramic or metal powders, and calcinating the material to form pores in the calcinated material. Pore diameter can be adjusted by selecting the particle size of the product to meet the needs of our application.
Applications Image
Resin Modifier
"TECHPOLYMER" is an acrylic-styrene polymer particles with controlled composition and structure.
Adding it to resins can impart flexibility and toughness, and is expected to improve adhesive strength and mechanical strength.
It can be used to modify the resin of FRP composite materials, adhesives, and electronic components (sealing materials, laminates).
