Acrylic Particles【MBX Series】
Overview
Spherical particles composed of cross-linked polymethyl methacrylate. The products are supplied in powder form. Grades with improved solvent and heat resistance are also available.
- Composition
- Cross-linked Polymethyl Methacrylate
- Structure
- Spherical
- Particle Size Distribution
- Standard Type
- True Density
- 1.2g/cm3
- Refractive Index
- 1.49
- 3% Thermal Decomposition Temperature
- 250-270℃
- Solvent Resistance
- Standard
- Weather Resistance
- Standard

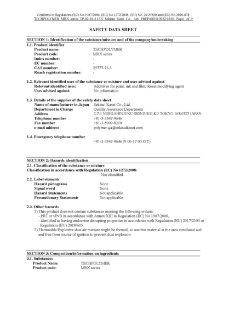

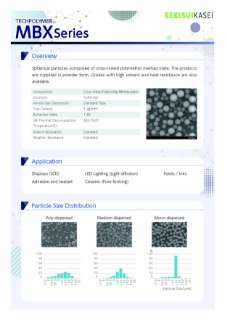

Documents Download

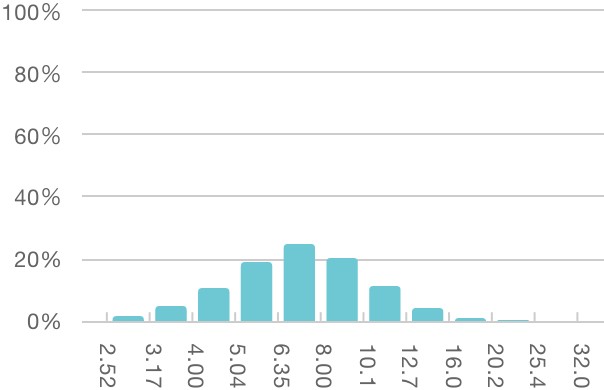

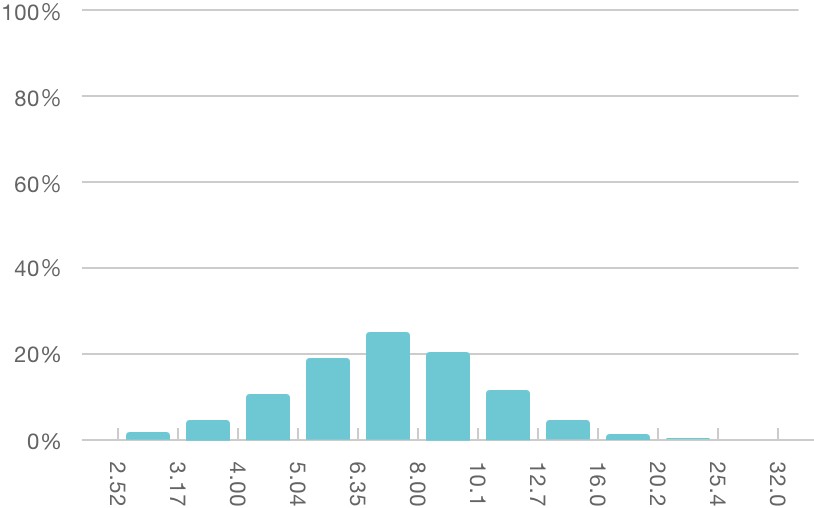

Particle Size Distribution
Standard type
The following is an example of the particle size distribution for the subjected "TECHPOLYMER" series.
Grades
Grade
Average Particle Size (μm)
MBX-5
5
MBX-8
8
MBX-12
12
MBX-20
20
MBX-30
30
MBX-40
40
MBX-50
50
MBX-60
60
MBX-80
80
MBX-100
100
MBX-200
200
Improved solvent resistance grades
Grades with increased solvent resistance are available by controlling the particle's degree of cross-linking. Suitable for applications which require high solvent resistance.
Grade
Average Particle Size (μm)
MBX-2H
2.5
MB30X-5
5
MB30X-8
8
MB30X-20
20
MB20X-30
30
Improved heat resistance grades
Grades with increased heat resistance are also available. The increases 3% thermal decomposition temperature to 280 to 300℃. Suitable for applications which require heat resistance.
Grade
Average Particle Size (μm)
MBX-2H
2.5
MBX-25H
25
