Overview
A Biconvex Lenticular Resin Particle developed by our original shape control technology.
- Composition
- Cross-linked Polymethyl Methacrylate
- Structure
- Biconvex Lenticular
- Particle Size
- 4μm
- Particle Size Distribution
- Standard Type
- Refractive Index
- 1.49
- 3% Thermal Decomposition Temperature
- 250-270℃
- Solvent Resistance
- Standard
Features
- (1) Total light transmittance and haze expected to improve compared to spherical particles (optical film applications).
- (2) A different unevenness from spherical particles is achievable adding special light diffusion properties.
Characteristic Comparison
Average Particle Size (µm)
Structure
Average Aspect Ratio
Biconvex LenticularStandard type
4 (Sphere conversion diameter)
Biconvex Lenticular
About1.5
MBX-5
5
Spherical
1

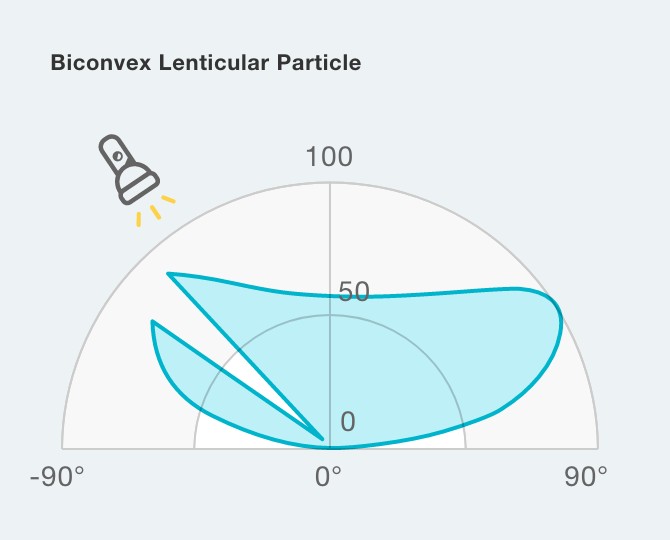

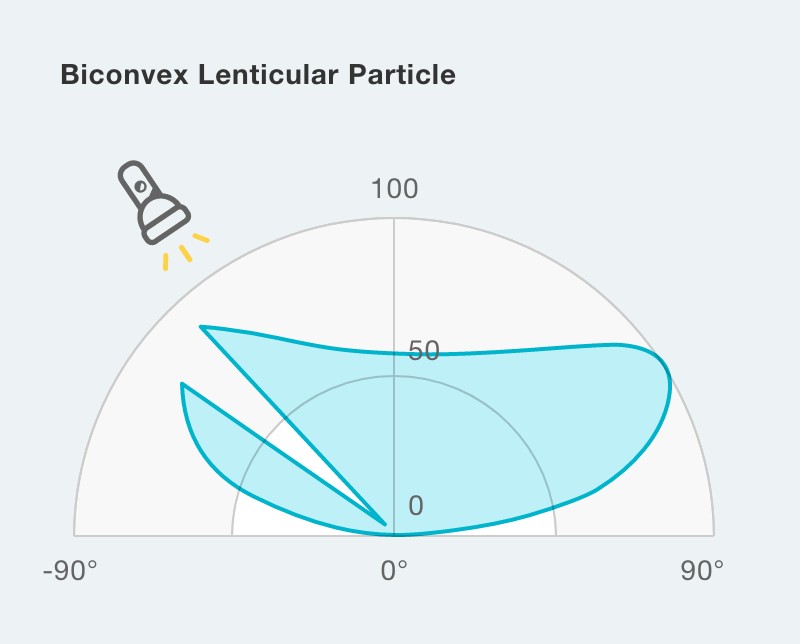

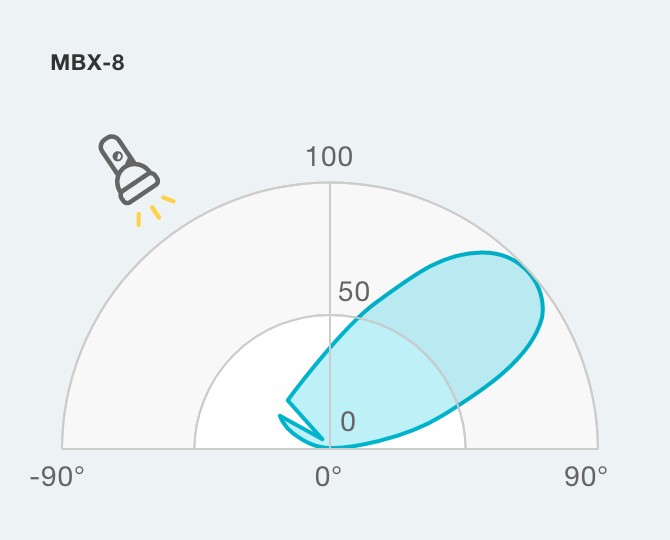

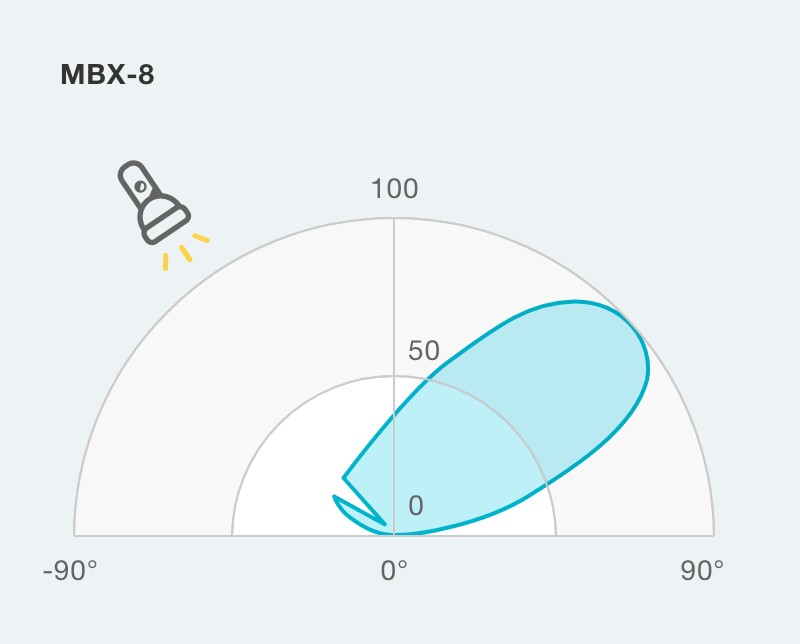

Light reflection evaluation
Measured the reflected light intensity of incident light (-45°) within the range (+/-90°) by goniophotometer. Biconvex lenticular particles reflect light at a wider range than spherical particles.
